FORUMS Community Talk, Chatter & Stuff General Photography Talk
Thread started 08 Nov 2011 (Tuesday) 05:43
Search threadPrev/next
sponsored links (only for non-logged)

MA for zooms


binliner
Senior Member
Avatar
711 posts
Joined Jan 2007
Location: Suffolk, UK

Nov 08, 2011 05:43 |  #1

I know micro adjustments have been discussed a lot but I can't really find a definitive answer on the best way to adjust zoom lenses...

Canon recommends the longest focal length or the one you use most often but on a lens like the 70-200mm I don't have a particular most used length but don't want to adjust for 200mm at the expense of 70mm.

What are peoples experiences of adjusting zooms?


Justin
website (external link) | flickr (external link) | facebook (external link) | blog (external link)
5D II | 7D | G1-X | 17-40mm f4 | 50mm f1.4 | 70-200mm f4 | 300mm f4 | 1.4x II | Lee filters


  LOG IN TO REPLY
hollis_f
Cream of the Crop
Avatar
10,649 posts
Gallery: 1 photo
Likes: 85
Joined Jul 2007
Location: Sussex, UK

Nov 08, 2011 05:47 |  #2

binliner wrote in post #13369743 (external link)
What are peoples experiences of adjusting zooms?

I don't bother.


Frank Hollis - Retired mass spectroscopist
Give a man a fish and he'll eat for a day. Teach a man to fish and he'll complain about the withdrawal of his free fish entitlement.
Gear Website (external link)


  LOG IN TO REPLY
Invertalon
Cream of the Crop
Avatar
6,495 posts
Likes: 24
Joined Jun 2009
Location: Cleveland, OH

Nov 08, 2011 06:29 |  #3

I always adjust for the telephoto end.


-Steve
Facebook (external link)
Flickr (external link)


  LOG IN TO REPLY
chauncey
Cream of the Crop
Avatar
9,696 posts
Gallery: 1 photo
Likes: 467
Joined Jun 2007
Location: MI/CO

Nov 08, 2011 07:26 as a reply to  @ Invertalon's post |  #4

different distances and zoom numbers yield different results...no consistency


The things you do for yourself die with you, the things you do for others live forever.
A man's worth should be judged, not when he basks in the sun, but how he faces the storm.

My stuff...http://1x.com/member/c​hauncey43 (external link)


  LOG IN TO REPLY
HappySnapper90
Cream of the Crop
5,145 posts
Likes: 3
Joined Aug 2008
Location: Cleveland, Ohio

Nov 08, 2011 08:10 |  #5

I believe the new 1D X has more than one MF adjustment setting for an individual zoom lens allowing a user to calibrate it at least at the shortest and longest focal length.





  LOG IN TO REPLY
digital ­ paradise
Awaiting the title ferry...
Avatar
19,772 posts
Gallery: 157 photos
Likes: 16869
Joined Oct 2009
Location: Canada

Nov 08, 2011 09:26 |  #6

Here is B&H's take on it.

http://www.youtube.com …PTnz_mimo&featu​re=related (external link)


Image Editing OK

Website (external link) ~ Buy/Sell Feedback


  LOG IN TO REPLY
number ­ six
fully entitled to be jealous
Avatar
8,964 posts
Likes: 109
Joined May 2007
Location: SF Bay Area

Nov 08, 2011 14:17 |  #7

The long end has the shallowest depth of field and so focus is most critical there. The short end is more forgiving of a small focus error.

So, in general, adjust at the long end. Unless you have a specific focal length that you use all the time.

-js


"Be seeing you."
50D - 17-55 f/2.8 IS - 18-55 IS - 28-105 II USM - 60 f/2.8 macro - 70-200 f/4 L - Sigma flash


  LOG IN TO REPLY
JeffreyG
"my bits and pieces are all hard"
Avatar
15,540 posts
Gallery: 42 photos
Likes: 620
Joined Jan 2007
Location: Detroit, MI

Nov 08, 2011 17:45 |  #8

binliner wrote in post #13369743 (external link)
What are peoples experiences of adjusting zooms?

When I get a lens that doesn't focus perfectly I send it to Canon and have them fix it.

They don't pay me to fix their stuff, so I don't. Life is too short for the misery of trying to MA a zoom lens for all focal lengths and focus distances.

Note that last part....it isn't just the focal length that can be off. Sometimes a lens will be fine at near distances and off at longer ones. I once had a 135L that was like that.

I think having a situation with a lens that MA can actually fix sounds like a nice thing, but it really only happens occasionally, and then pretty much only with primes.


My personal stuff:http://www.flickr.com/​photos/jngirbach/sets/ (external link)
I use a Canon 5DIII and a Sony A7rIII


  LOG IN TO REPLY
digital ­ paradise
Awaiting the title ferry...
Avatar
19,772 posts
Gallery: 157 photos
Likes: 16869
Joined Oct 2009
Location: Canada

Nov 08, 2011 18:19 |  #9

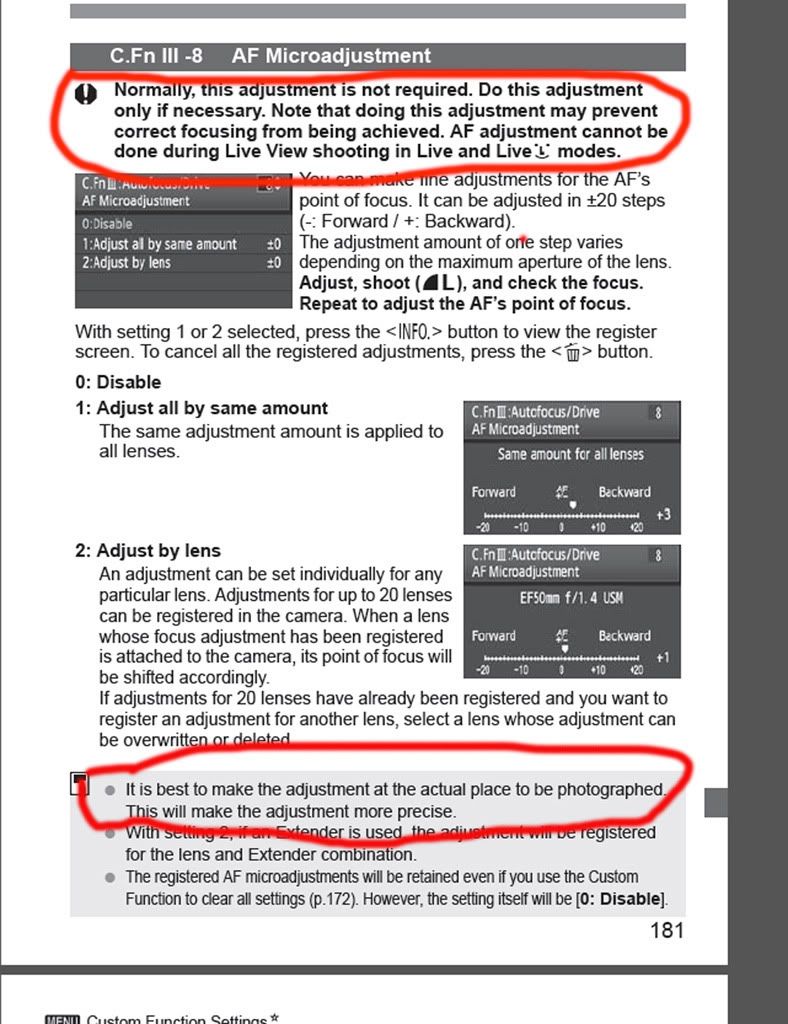

I feel the same. This is what the manuals states.

IMAGE: http://i33.photobucket.com/albums/d74/Zenon1/Screen-Shot-2011-10-17-at-607-1.jpg

I did a test with my 100L macro 2.8 IS and had different results at 8, 10 and 12 feet. As much of pain it is I also send my lenses to Canon to serviced by trained technicians who have the correct tools. Apparently there are multiple measurements on any lens when tuning them.

Even this does not recommend test rulers or targets and re-inforces to shoot at the distance you normally shoot.

http://www.learn.usa.c​anon.com …oadjustment_art​icle.shtml (external link)

If you read Chuck Westfall's take on this this is the last paragraph of the precautions. When Canon comes up with a proven official procedure then I will take a look at it again.

Last but not least, there is no "official" Canon method for setting AF microadjustments, so this procedure is unofficial. If you think you can do better, then by all means, go for it. Towards that end, be advised that some independently made tools are designed to help you set AF microadjustments accurately. One of these is the LensAlign kit, due out soon from RawWorkflow.com:

There is a thread here about a person who developed software to do this. Still a Beta but I will keep my eye on it.

Image Editing OK

Website (external link) ~ Buy/Sell Feedback


  LOG IN TO REPLY
digital ­ paradise
Awaiting the title ferry...
Avatar
19,772 posts
Gallery: 157 photos
Likes: 16869
Joined Oct 2009
Location: Canada

Nov 08, 2011 18:27 |  #10

I found Chucks tech tips on this. I still can't get over suggesting "if you can do better go for it".

http://digitaljournali​st.org/issue0812/tech-tips.html (external link)


Image Editing OK

Website (external link) ~ Buy/Sell Feedback


  LOG IN TO REPLY
Snydremark
my very own Lightrules moment
20,051 posts
Gallery: 66 photos
Likes: 5573
Joined Mar 2009
Location: Issaquah, WA USA

Nov 08, 2011 18:29 |  #11

I pretty much do my adjustments at the telephoto end; it's been good enough in most cases. If you really don't have a frequently used focal length, you could split the difference and do the MA at the middle range of the lens. Then you'd only be pulling either end off a fraction of whatever difference there might be at either end.


- Eric S.: My Birds/Wildlife (external link) (R5, RF 800 f/11, Canon 16-35 F/4 MkII, Canon 24-105L f/4 IS, Canon 70-200L f/2.8 IS MkII, Canon 100-400L f/4.5-5.6 IS I/II)
"The easiest way to improve your photos is to adjust the loose nut between the shutter release and the ground."


  LOG IN TO REPLY
digital ­ paradise
Awaiting the title ferry...
Avatar
19,772 posts
Gallery: 157 photos
Likes: 16869
Joined Oct 2009
Location: Canada

Nov 08, 2011 19:00 |  #12

A lot of people do claim success with it. Personally I'm not 100% convinced at this point and I did give it a good try. Even purchased the lens align. Must be handy for third party lens owners. Mind you you can send the lens back to the manufacturer.


Image Editing OK

Website (external link) ~ Buy/Sell Feedback


  LOG IN TO REPLY
