5D3 + Ranger RX Speed + FlexTT5 + ST4 Power Tracking Issue?


mrdunu
Member
164 posts
Joined Nov 2011

Sep 01, 2013 06:55 |  #1

Hi POTN,

So I've recently pulled the trigger on a PocketWizard ST4, FlexTT5 and a Ranger RX Speed with an S-Head, and I'm having an issue with the FlexTT5 power tracking.

I am trying to control the Flash Power Level of the Ranger RX Speed/S-Head via the Flash Exposure Compensation (FEC) menu within my 5D3, and am noticing that the Power Level defaults back to 4.50 (bang in the middle of 1.5 and 7.5) after one shot. This happens despite the FEC being constant at say -3 (where it should stick to the minimum power level of 1.5).

Has anyone experienced such an issue? If so, have you found a solution? Is it just a matter of changing the PowerTracking settings within the Pocket Wizard Utility?

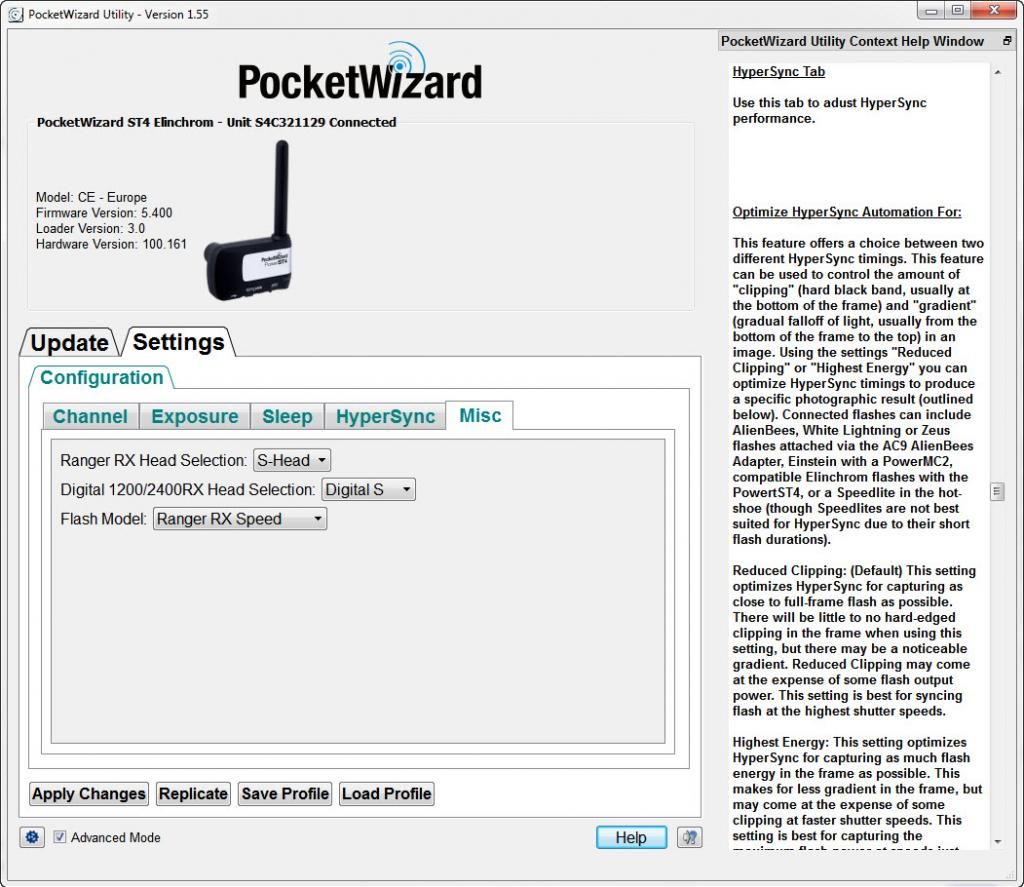

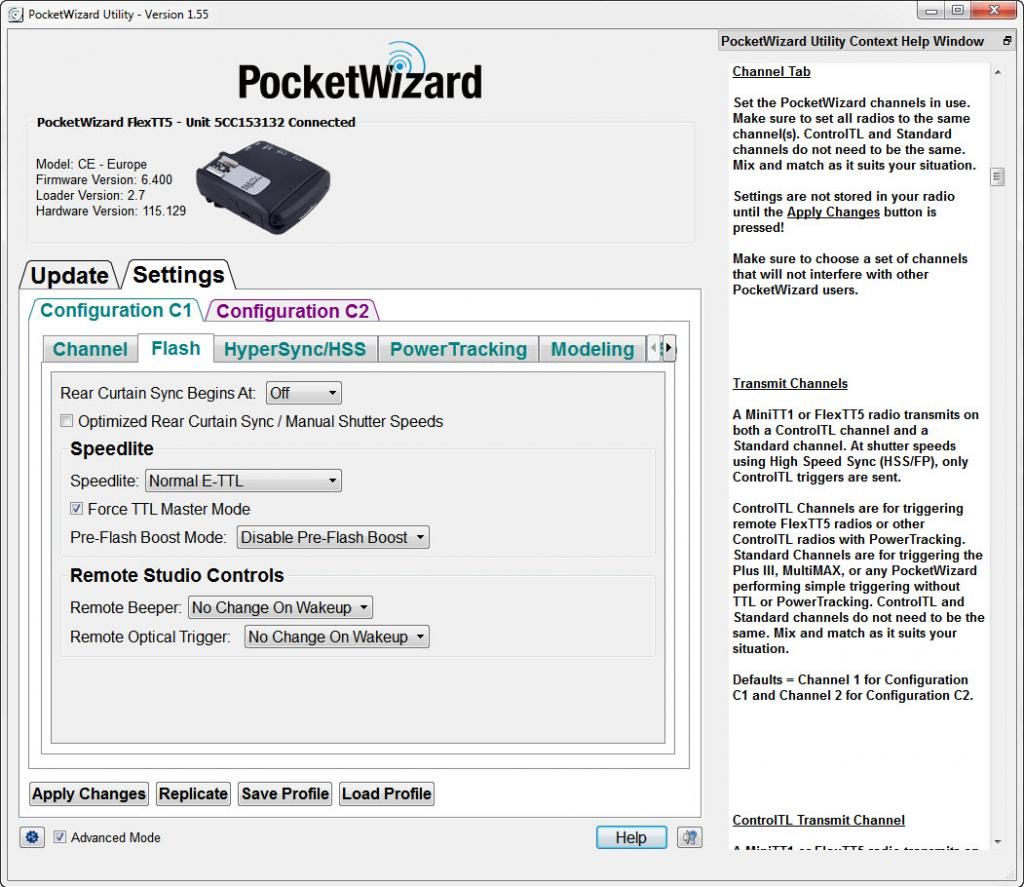

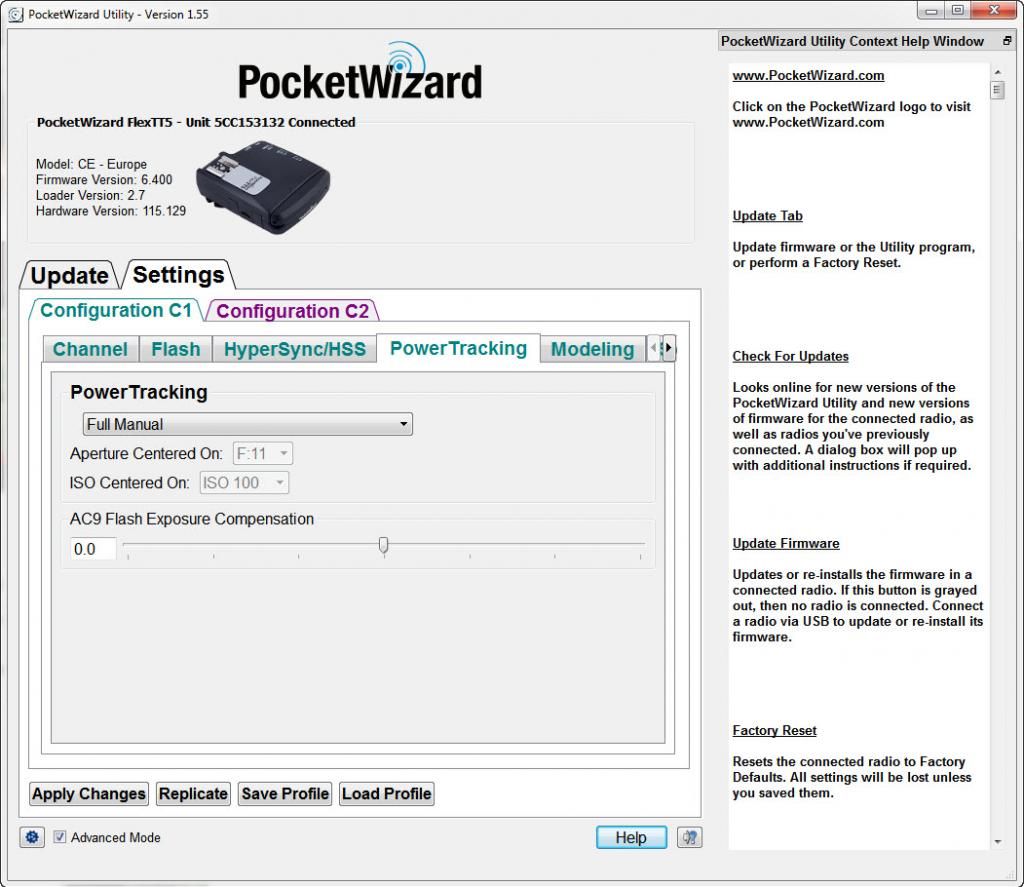

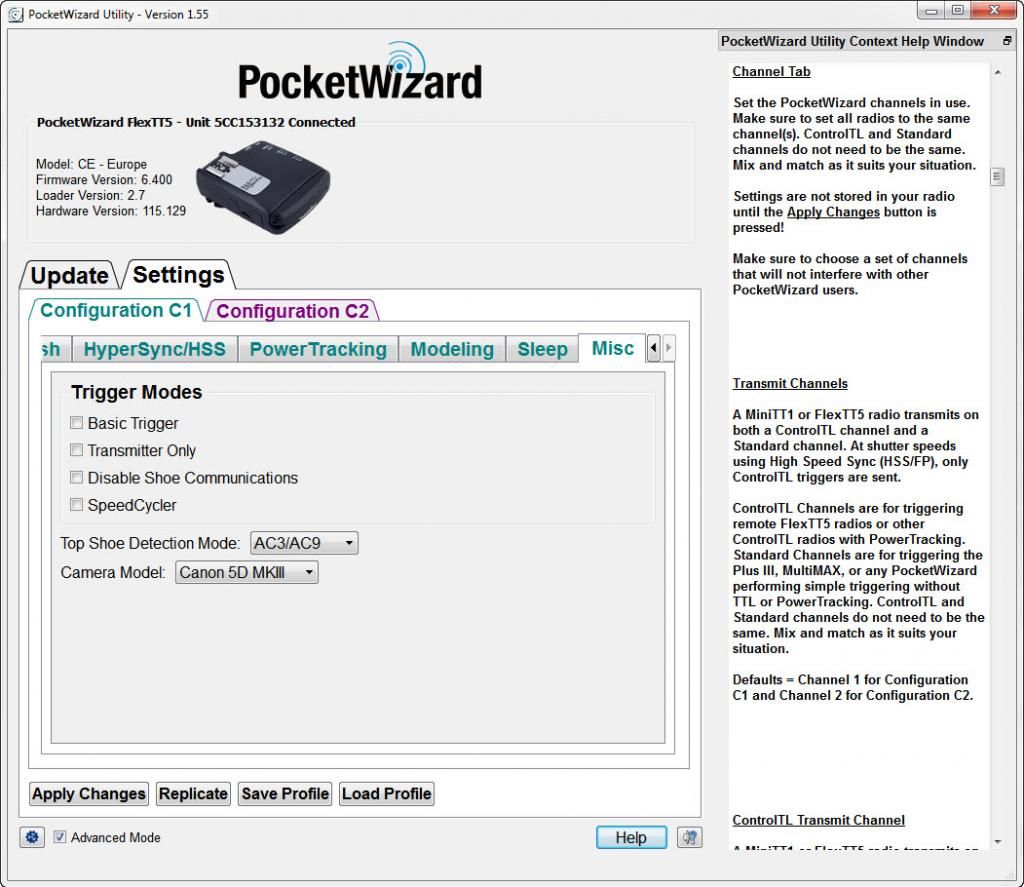

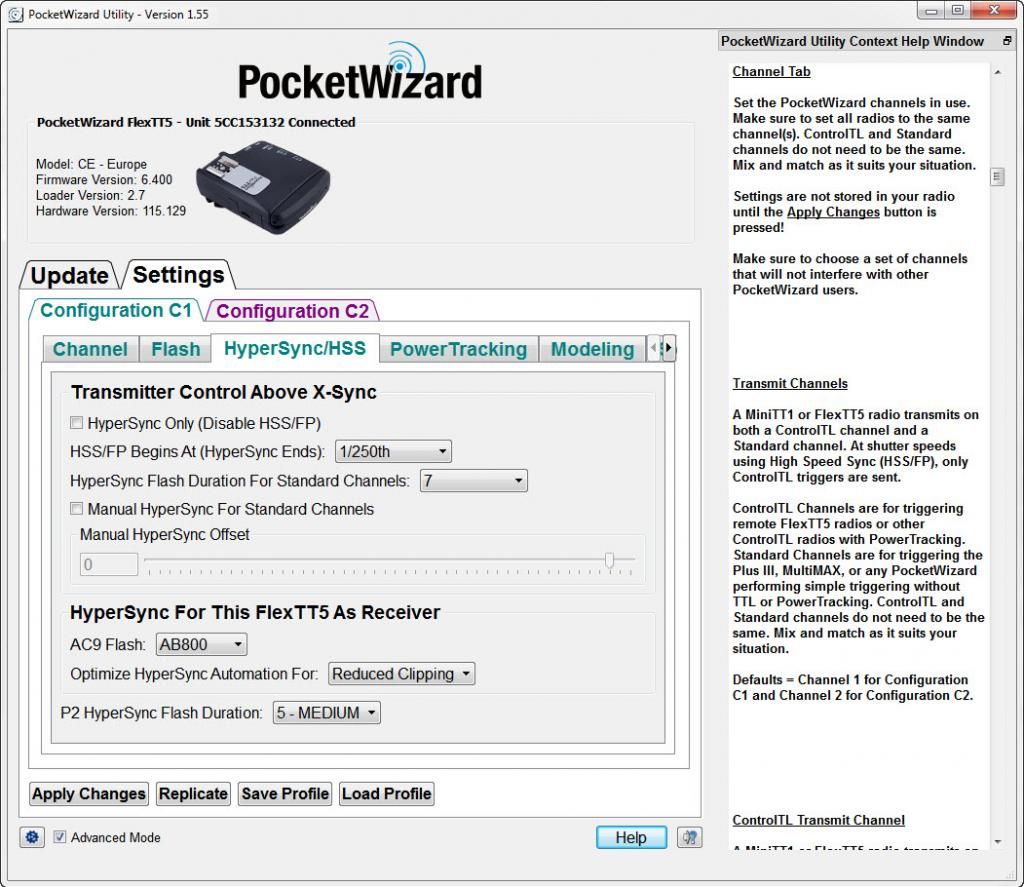

Again, my current settings are listed below. Any feedback would be greatly appreciated.

Thanks

IMAGE: http://img.photobucket.com/albums/v169/v_kalra/FlexTT5_1.jpg
IMAGE: http://img.photobucket.com/albums/v169/v_kalra/FlexTT5_2.jpg
IMAGE: http://img.photobucket.com/albums/v169/v_kalra/FlexTT5_3.jpg
IMAGE: http://img.photobucket.com/albums/v169/v_kalra/FlexTT5_5.jpg
IMAGE: http://img.photobucket.com/albums/v169/v_kalra/FlexTT5_6.jpg
IMAGE: http://img.photobucket.com/albums/v169/v_kalra/FlexTT5_4.jpg

IMAGE: http://img.photobucket.com/albums/v169/v_kalra/ST4_1.jpg
IMAGE: http://img.photobucket.com/albums/v169/v_kalra/ST4_3.jpg

Optics:
Canon 7D | 17-55 | ∑ 30 1.4 | MPE-65
2 x Canon 5D Mk III | 16-35L II | 24-70L II | 70-200L 2.8 IS II | 2X III Extender | 85L II | 100L IS Macro | 8-15L Fisheye


  LOG IN TO REPLY
pspentax
Member
Avatar
126 posts
Likes: 1
Joined Mar 2011
Location: Lisboa, Portugal

Sep 01, 2013 08:00 |  #2

I think some of the new TT5 firmware are broken for the 5D3.
I have the TT5/MC2/Einstein and with the 5D3 i have the same erratic/strange problem.
I will teste with the 5D2 or try old firmware and i will update the post :)


My site (external link) -----500px (external link)----- flickr (external link)


  LOG IN TO REPLY
mrdunu
THREAD ­ STARTER
Member
164 posts
Joined Nov 2011

Sep 01, 2013 17:13 |  #3

pspentax wrote in post #16258165 (external link)
I think some of the new TT5 firmware are broken for the 5D3.
I have the TT5/MC2/Einstein and with the 5D3 i have the same erratic/strange problem.
I will teste with the 5D2 or try old firmware and i will update the post :)

Good to hear that I'm not the only one experiencing this issue!

Thank youu :)


Optics:
Canon 7D | 17-55 | ∑ 30 1.4 | MPE-65
2 x Canon 5D Mk III | 16-35L II | 24-70L II | 70-200L 2.8 IS II | 2X III Extender | 85L II | 100L IS Macro | 8-15L Fisheye


  LOG IN TO REPLY
pspentax
Member
Avatar
126 posts
Likes: 1
Joined Mar 2011
Location: Lisboa, Portugal

Sep 01, 2013 18:17 |  #4

mrdunu wrote in post #16259489 (external link)
Good to hear that I'm not the only one experiencing this issue!

Thank youu :)

With the 5D2 it works as it was intend :) ... but something is broken with the 5D3.
It´s very sad because the 5D3 as -3/+3 stops flash adjust almost all the range for the Einstein and similar with the AC3.

The problem is similar with the first´s firmware for the 5D2


My site (external link) -----500px (external link)----- flickr (external link)


  LOG IN TO REPLY
mrdunu
THREAD ­ STARTER
Member
164 posts
Joined Nov 2011

Sep 01, 2013 18:57 |  #5

pspentax wrote in post #16259630 (external link)
With the 5D2 it works as it was intend :) ... but something is broken with the 5D3.
It´s very sad because the 5D3 as -3/+3 stops flash adjust almost all the range for the Einstein and similar with the AC3.

The problem is similar with the first´s firmware for the 5D2

Just to confirm, does this issue happen with the 5D3 + AC3 combo?


Optics:
Canon 7D | 17-55 | ∑ 30 1.4 | MPE-65
2 x Canon 5D Mk III | 16-35L II | 24-70L II | 70-200L 2.8 IS II | 2X III Extender | 85L II | 100L IS Macro | 8-15L Fisheye


  LOG IN TO REPLY
pspentax
Member
Avatar
126 posts
Likes: 1
Joined Mar 2011
Location: Lisboa, Portugal

Sep 01, 2013 19:22 |  #6

mrdunu wrote in post #16259691 (external link)
Just to confirm, does this issue happen with the 5D3 + AC3 combo?

With the 5D3 and AC3 it work fantastic :) and it's faster to adjust because it as hard button :D .... but is another piece on top of the TT5 :(


My site (external link) -----500px (external link)----- flickr (external link)


  LOG IN TO REPLY
mrdunu
THREAD ­ STARTER
Member
164 posts
Joined Nov 2011

Sep 02, 2013 00:35 |  #7

pspentax wrote in post #16259759 (external link)
With the 5D3 and AC3 it work fantastic :) and it's faster to adjust because it as hard button :D .... but is another piece on top of the TT5 :(

I purchased the ac3 after reading this post!

here's hoping that I won't encounter any further issues!

thank you for your help! :)


Optics:
Canon 7D | 17-55 | ∑ 30 1.4 | MPE-65
2 x Canon 5D Mk III | 16-35L II | 24-70L II | 70-200L 2.8 IS II | 2X III Extender | 85L II | 100L IS Macro | 8-15L Fisheye


  LOG IN TO REPLY
pspentax
Member
Avatar
126 posts
Likes: 1
Joined Mar 2011
Location: Lisboa, Portugal

Sep 10, 2013 12:14 |  #8

I have received a reply from PW, we have to wait :(

"Thank you for the additional information. Now I know exactly what problem you are experiencing. Unfortunately, this is a known bug for some cameras and our radios. Our engineers are aware of this problem and it should be fixed in a future firmware release.

Until the problem is fixed, the best alternative that I can suggest is to use an AC3 ZoneController. The AC3 gives you the same level of power control without having to use the FEC button.
"

Cheers,
Pedro


My site (external link) -----500px (external link)----- flickr (external link)


  LOG IN TO REPLY
