troypiggo wrote in post #11009482
I've mainly used it only up to around 3:1. On the few occasions I've gone higher and up to 5:1, I guess the ambient was bright enough. I definitely did notice it was darker and it wasn't easy, but I made do. Now you've got me intrigued and I must have a play with the modelling lights at these higher mags to see how much better it is. I asked you not to tell me what I'm missing...

Does make you respect guys like LordV who just use speedlites on a bracket even more. ie no way of modelling lights and he shoots at 5:1 more times in a month than I would in a lifetime I reckon.

Yea the modeling lamps are not very bright, but they do really help when at the higher magnifications.

And yes that is pretty amazing that they do this stuff without a macro flash. I said no thanks to that and waiting until I could afford the appropriate tools.

[Gear List | Flickr | My Reviews] /|\ Tripod Leg Protection /|\
 GIVE a man a fish and he'll eat for a day. TEACH a man to fish and he'll eat for a lifetime.

Here's my setup:

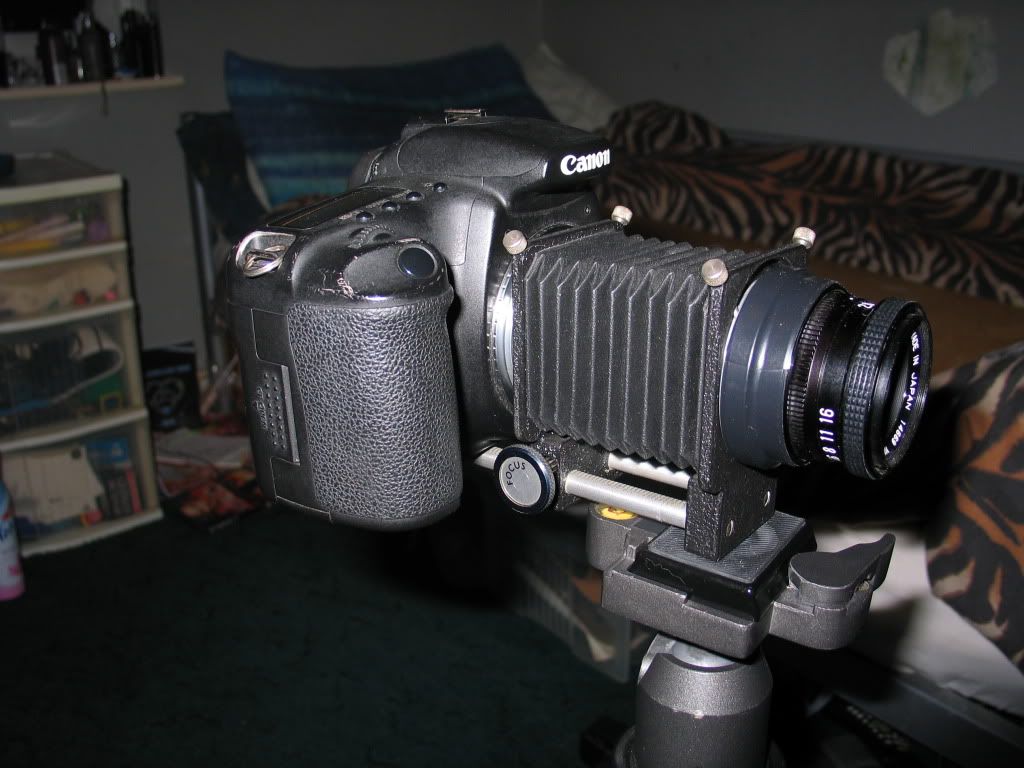

20D on some old BPM bellows (40-150mm) with a Yashica 50mm f/2.8 enlarger lens taped to the front mount (the lens has a 52mm screw thread and I don't think the right mount will be easy to find). Maximum magnification is about 3.75:1, so 6mm fills a whole APS-C frame horizontally.

This is what I've got with it so far:

The bug's head is about a millimetre or so wide, so it's a really tiny bug.

I'm also using a little LED torch for lighting and a focussing aid at the moment as my PC sync cable only works intermittently.

Gear List

HTTP response: NOT FOUND | MIME changed to 'image/gif' | Redirected to error image by TINYPIC

how bout some oldie but goodie!

got these bellows long ago but never used them because i couldnt find the double cable release ... or was i too lazy to look..

http://onehourwedding.​blogspot.com/

troypiggo wrote in post #11003327
I've never used the modelling light, so don't know what I'm missing out on. Sssh, don't tell me.

ben_r_ wrote in post #11009285
Really?! So how can you see anything at 5x on the MP-E 65?! Unless Im shooting in way bright sunlight I cant see anything at around 3.5x+ magnification!

+1

I love being able to turn of the focus assist light from the shutter button, I use almost all the time with the MP-E.

My Photography Home Page
Gear List
FAQ on UV and Clear Protective Filters
Macrophotography by LordV
flickr Flickr Home

My macro gear

HOSTED PHOTO
please log in to view hosted photos in full size.

HOSTED PHOTO
please log in to view hosted photos in full size.

7D, 5D3, 60D, D70s, Fuji X100, Oly XZ1, Sigma 50/1.4 ART, EF 100 /2.8 macro, EFs 60/2.8 macro, EF 17-40/4L, EF 24-105/4L IS, EF 70-200 F/2.8L IS, EF 70-200 F/4L IS, EF 10-22/3.5, EF85/F1.8, Tamron 17-50/2.8, Sigma EX 80-400 /4.5 OS APO DG. Sekonic L-308S, Helios 58/2, Tak 55/2, Tak 50/1.4, Zeiss Pancolar 50/1.8, Zeiss N-Mirotar 210mm/0.03, CZJ Sonnar 135/3.5, CZJ Triotar 135/4, Tak 135/3.5, Zeiss Biometar 80/2.8, William Optic Megrez72.

lexanite wrote in post #11166966
My macro gear

Macro bellows set with slide dupplicator

HOSTED PHOTO
please log in to view hosted photos in full size.

HOSTED PHOTO
please log in to view hosted photos in full size.

7D, 5D3, 60D, D70s, Fuji X100, Oly XZ1, Sigma 50/1.4 ART, EF 100 /2.8 macro, EFs 60/2.8 macro, EF 17-40/4L, EF 24-105/4L IS, EF 70-200 F/2.8L IS, EF 70-200 F/4L IS, EF 10-22/3.5, EF85/F1.8, Tamron 17-50/2.8, Sigma EX 80-400 /4.5 OS APO DG. Sekonic L-308S, Helios 58/2, Tak 55/2, Tak 50/1.4, Zeiss Pancolar 50/1.8, Zeiss N-Mirotar 210mm/0.03, CZJ Sonnar 135/3.5, CZJ Triotar 135/4, Tak 135/3.5, Zeiss Biometar 80/2.8, William Optic Megrez72.

A lousy picture of my T1i (500D), and (from right to left) an FD mount 100mm macro, FD-to-EOS adapter, and two sets of $8 tubes. I normally only use 1 set, but was playing around tonight. I also have a bellows that I rarely use any more.

Gripped 7D, gripped, full-spectrum modfied T1i (500D), SX50HS, A2E film body, Tamzooka (150-600), Tamron 90mm/2.8 VC (ver 2), Tamron 18-270 VC, Canon FD 100 f/4.0 macro, Canon 24-105 f/4L,Canon EF 200 f/2.8LII, Canon 85 f/1.8, Tamron Adaptall 2 90mmf/2.5 Macro, Tokina 11-16, Canon EX-430 flash, Vivitar DF-383 flash, Astro-Tech AT6RC and Celestron NexStar 102 GT telescopes, various other semi-crappy manual lenses and stuff.

Now, I'm going totally overboard with extensions; I added my bellows to the middle of the rig:

The tubes, bellows and adapters total about 13" of extension (33cm)

And I still have close to 4" (10cm) of working distance with the lens fully extended:

And here is the final result: this is in Times Roman 12pt font, which measures ~4.2mm tall. That makes the magnification on my crop sensor ~3.5x, which is pretty close to what you would expect just doing the math. I'm totally amazed how sharp it is in the piece that is in focus; I guess all that air doesn't hurt the image much . It is showing ink droplets that are too small to see by eye, even for someone as near-sighted as me (which is saying a lot). It also shows the microscopic DOF; I had the paper as flat and square as I could get it by eye, and you can still see the focus rolling off toward the top and bottom of the character:
