Fotodiox WonderPana FreeArc filter system, part two

3 posts, 1 page
1

jeffreybehr
Senior Member
Avatar
738 posts
Gallery: 9 photos
Likes: 750
Joined Apr 2013
Location: Phoenix, Arizona USA
More info
Post edited over 8 years ago by jeffreybehr.

May 02, 2015 02:40 |  #1

See Part One here. https://photography-on-the.net …showthread.php?​p=17540362

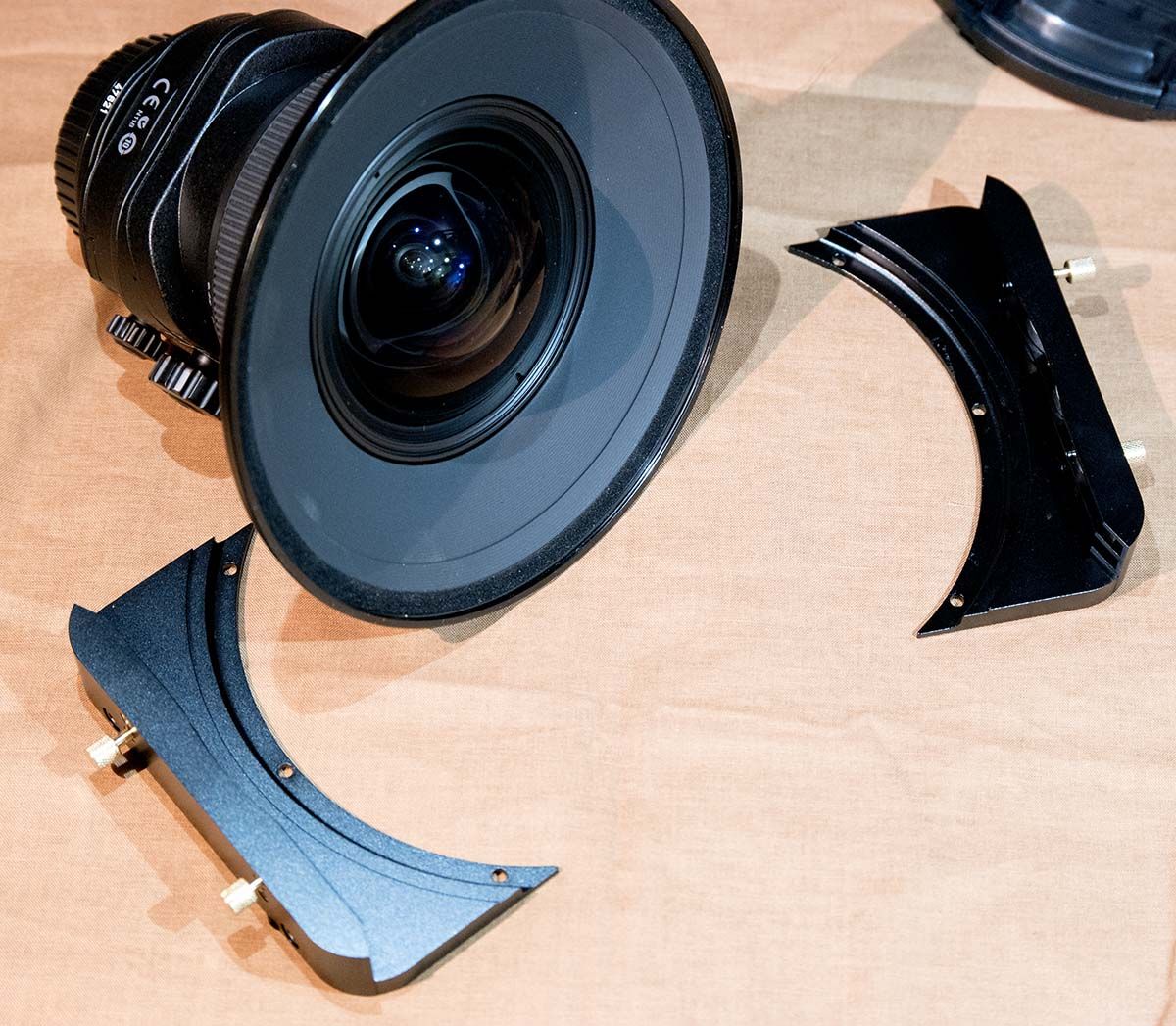

The Photodiox WonderPana filter system also accommodates slide-in filters--BIG slide-in filters--thru the use of a pair of adapters.

IMAGE: http://i89.photobucket.com/albums/k220/jeffreybehr/Samsung%20NX1/17mm%20TS-E%20lens%20and%20Fotodiox%20WonderPana%20filter/17TSE%20front%20w%20Fotodiox%20ring%20amp%20wings_1200w_zpst1p4yfvq.jpg
IMAGE LINK: http://s89.photobucket​.com …200w_zpst1p4yfv​q.jpg.html (external link)

These screw onto the rear of the adapter ring.
IMAGE: http://i89.photobucket.com/albums/k220/jeffreybehr/Samsung%20NX1/17mm%20TS-E%20lens%20and%20Fotodiox%20WonderPana%20filter/Fotodiox%20ring%20on%20lens%20rear%20with%20wings_1200w_zpsgujhz0as.jpg
IMAGE LINK: http://s89.photobucket​.com …200w_zpsgujhz0a​s.jpg.html (external link)
...and accommodate two filters, either two slide-ins or one slide-in and one screw-in.

Here's my three-stop Grand-ND.
IMAGE: http://i89.photobucket.com/albums/k220/jeffreybehr/Samsung%20NX1/17mm%20TS-E%20lens%20and%20Fotodiox%20WonderPana%20filter/Fotodiox%20ring%20on%20lens%20front%20with%20grad-ND%20started_1200w_zpsc2knwflr.jpg
IMAGE LINK: http://s89.photobucket​.com …200w_zpsc2knwfl​r.jpg.html (external link)
IMAGE: http://i89.photobucket.com/albums/k220/jeffreybehr/Samsung%20NX1/17mm%20TS-E%20lens%20and%20Fotodiox%20WonderPana%20filter/Fotodiox%20ring%20on%20lens%20front%20with%20grad-ND%20centered_1200w_zpsgkgdtqn0.jpg
IMAGE LINK: http://s89.photobucket​.com …200w_zpsgkgdtqn​0.jpg.html (external link)

This system is a bit expensive but effective.

BTW I'm now using my two TS-Es--the 17mm and the 24mm Mk. II--on my Samsung NX1 body with a dumb adapter. One might argue that the NX1's crop sensor doesn't need such large filters, but I'm not worrying about that, I'm just going to use the system I have. :-)

Fuji X-H2 w/SmallRig all-around L-plate.. Fugi lenses in 10-24/4, 16-55/2.8, 70-200, and 33/1.4, Canon TS-Es in 24/3.5 and 50/2.8, and Viltrox 75/1.2.. Gitzo GT-3533S Systematic tripod with leveler and Rogeti geared head.


  LOG IN TO REPLY
gremlin75
Goldmember
Avatar
2,738 posts
Gallery: 4 photos
Likes: 226
Joined Feb 2011
Location: Detroit, MI
More info

May 02, 2015 15:37 |  #2

Why don't you make part two the first reply in your part one thread. That way all the info is in one spot and people won't have to hunt around for it.

Nice to see info on this filter system so thank you!





  LOG IN TO REPLY
jeffreybehr
THREAD ­ STARTER
Senior Member
Avatar
738 posts
Gallery: 9 photos
Likes: 750
Joined Apr 2013
Location: Phoenix, Arizona USA
More info
Post edited over 8 years ago by jeffreybehr. (2 edits in all)

May 02, 2015 16:36 |  #3

gremlin75 wrote in post #17540820 (external link)
Why don't you make part two the first reply in your part one thread. That way all the info is in one spot and people won't have to hunt around for it.

Nice to see info on this filter system so thank you!

1. You're welcome. I was still a bit confused by the info and noninfo on Photodiox's site, so I thought others might benefit from my limited experience with it.

2. POTN has a limit on pics within one post, which I exceeded, so I created Part Two. I now have links to the other post in each part.

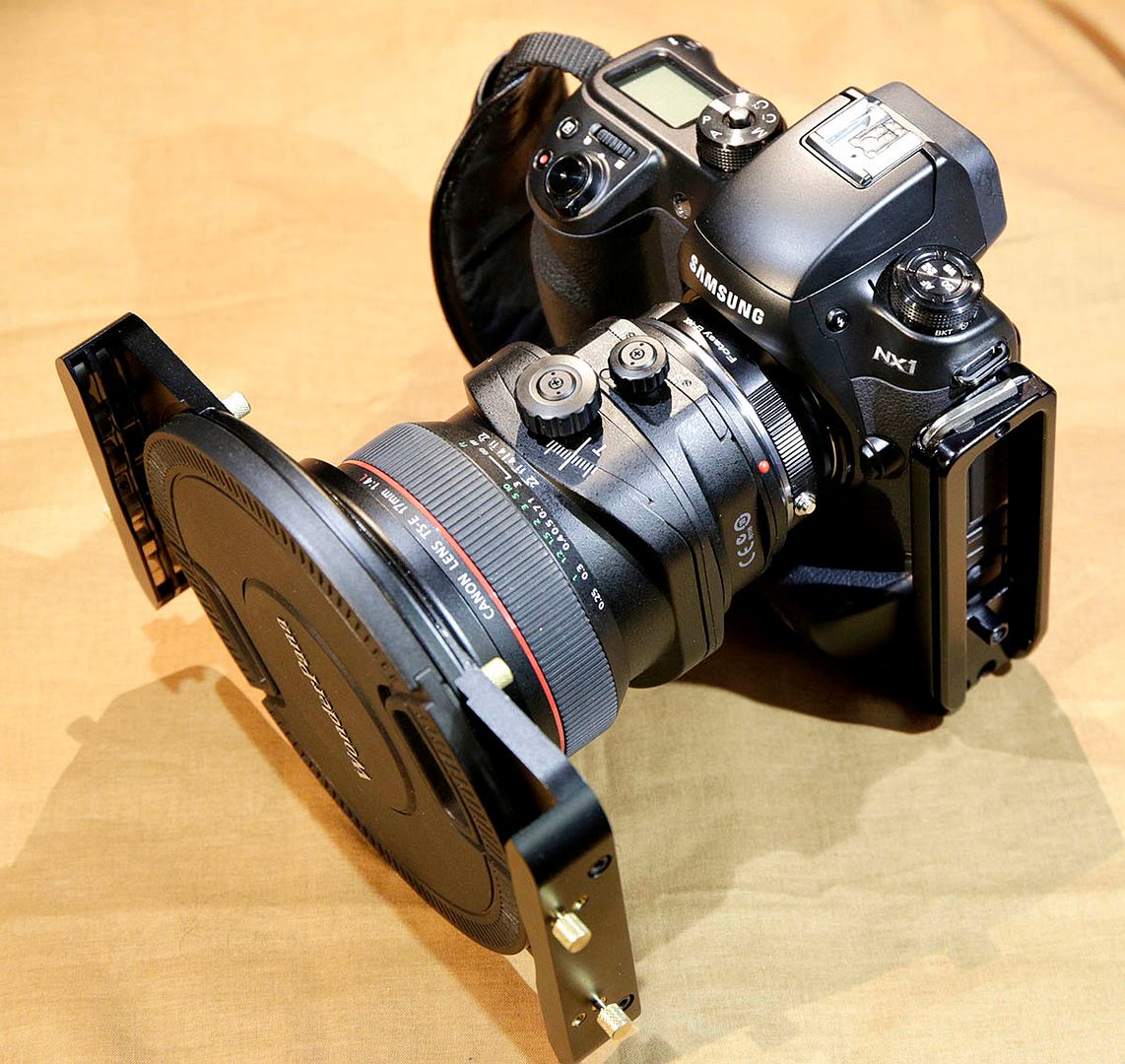

A couple more pics, the lens on my Samsung NX1 (which I LOVE).

IMAGE: http://i89.photobucket.com/albums/k220/jeffreybehr/Samsung%20NX1/17mm%20TS-E%20lens%20and%20Fotodiox%20WonderPana%20filter/Fotodiox%20amp%2017%20on%20NX1%20L-rear%20quarter_1200w_zpsf8qlriwk.jpg
IMAGE LINK: http://s89.photobucket​.com …200w_zpsf8qlriw​k.jpg.html (external link)

IMAGE: http://i89.photobucket.com/albums/k220/jeffreybehr/Samsung%20NX1/17mm%20TS-E%20lens%20and%20Fotodiox%20WonderPana%20filter/Fotodiox%20amp%2017%20on%20NX1%20L-front%20quarter_1200w_zpsig48saf7.jpg
IMAGE LINK: http://s89.photobucket​.com …200w_zpsig48saf​7.jpg.html (external link)

Fuji X-H2 w/SmallRig all-around L-plate.. Fugi lenses in 10-24/4, 16-55/2.8, 70-200, and 33/1.4, Canon TS-Es in 24/3.5 and 50/2.8, and Viltrox 75/1.2.. Gitzo GT-3533S Systematic tripod with leveler and Rogeti geared head.
