2 newbie questions


Fabian9931
Senior Member
Avatar
609 posts
Joined Dec 2007
Location: Jersey

May 07, 2008 23:06 |  #1

hey everyone. this probably sounds stupid but i would love to know why professional photographers use a flash bracket and have the wire sticking out of it?


Canon 60D EOS | Canon 50mm f1.4 | Canon 70-200mm IS f2.8 L | Canon 16-35mm 2.8 L II | 430 EX Speedlite x2 | PocketWizard x2 | Alienbee 400 | DIY Beauty Dish for 430ex and AB400 |


  LOG IN TO REPLY
zeva
Goldmember
Avatar
2,533 posts
Likes: 1
Joined Jul 2007
Location: Silicon Valley, CA

May 07, 2008 23:13 |  #2

i think it further removes the shadow of the lens... but ill let someone more qualified to answer ur questioN :)


40D :20D: Speedlite 430ex
100-400 F/4.5-5.6 L :17-55 F/2.8 IS :28-135 F/3.5-5.6 IS: 18-55 F/3.5-5.6: 10-22 F/3.5-4.5: 70-200 F/2.8 IS


  LOG IN TO REPLY
turbo212003
Senior Member
Avatar
852 posts
Joined Oct 2006
Location: Kansas

May 08, 2008 00:56 |  #3

Fabian9931 wrote in post #5482488 (external link)
hey everyone. this probably sounds stupid but i would love to know why professional photographers use a flash bracket and have the wire sticking out of it?


Less shadows. The wire connects the flash to the camera body.


IMAGE NOT FOUND
Byte size: ZERO | Content warning: NOT AN IMAGE

Gear List
http://www.grantwphoto​.com (external link)


  LOG IN TO REPLY
Jim ­ M
Goldmember
1,656 posts
Likes: 39
Joined Aug 2006

May 08, 2008 07:41 |  #4

The shadow issue is only a part of the reason and probably not the most important one. After all, the on camera flash does pretty well with shadows. However, a flash bracket is the easiest way to reduce red-eye. The farther the flash is from the lens axis, the less likely you are to get red-eye. Keeping the flash high and directly over the lens will hide shadows behind the subject, at least to a point.

The wire, as previously stated, is what connects the flash to the camera and tells it when to go off and if it has E-TTL capability, communicates exposure information back and forth between the camera and flash.





  LOG IN TO REPLY
Fabian9931
THREAD ­ STARTER
Senior Member
Avatar
609 posts
Joined Dec 2007
Location: Jersey

May 08, 2008 09:13 as a reply to  @ Jim M's post |  #5

thanks for the replies. my next question is. if your shooting vertically some people say its better for the flash to be on top instead of the side. this is only true if your shooting direct right? if i was bouncing it off the ceiling what does it matter? also why would it be better on top then on the side. thanks


Canon 60D EOS | Canon 50mm f1.4 | Canon 70-200mm IS f2.8 L | Canon 16-35mm 2.8 L II | 430 EX Speedlite x2 | PocketWizard x2 | Alienbee 400 | DIY Beauty Dish for 430ex and AB400 |


  LOG IN TO REPLY
msowsun
"approx 8mm"
Avatar
9,317 posts
Gallery: 18 photos
Best ofs: 1
Likes: 416
Joined Jul 2007
Location: Peterborough Ont. Canada

May 08, 2008 09:22 |  #6

Another handy function of flash brackets, is to allow you to rotate the camera to "Portrait", while keeping the flash upright and centered over the lens.

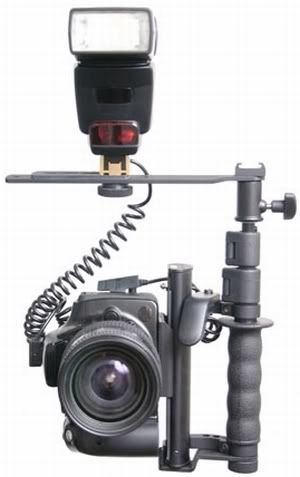

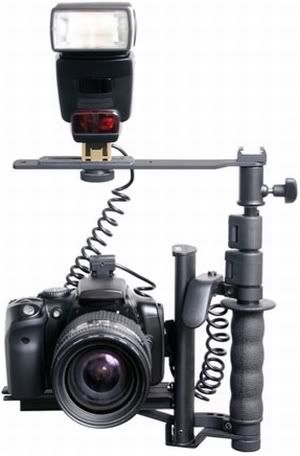

This particular flash bracket by "RPS Studio" also allows the photographer to trip the shutter with either hand as the bracket has a built in shutter release button and cable that you attach to the camera.

IMAGE: http://i2.photobucket.com/albums/y17/msowsun/photo%20stuff/rps1.jpg
IMAGE: http://i2.photobucket.com/albums/y17/msowsun/photo%20stuff/rps2.jpg

Mike Sowsun / SL1 / 80D / EF-S 24mm STM / EF-S 10-18mm STM / EF-S 18-55mm STM / EF-S 15-85mm USM / EF-S 55-250mm STM / 5D3 / Samyang 14mm 2.8 / EF 40mm 2.8 STM / EF 50mm 1.4 USM / EF 100mm 2.0 USM / EF 100mm 2.8 USM Macro / EF 24-105mm IS / EF 70-200mm 2.8L IS Mk II / EF 100-400 II / EF 1.4x II
Full Current and Previously Owned Gear List over 40 years Flickr Photostream (external link)


  LOG IN TO REPLY
Wilt
Reader's Digest Condensed version of War and Peace [POTN Vol 1]
Avatar
46,482 posts
Gallery: 1 photo
Likes: 4578
Joined Aug 2005
Location: Belmont, CA

May 08, 2008 11:44 |  #7

The purpose of a bracket to a wedding professional is that it...


  1. Positions the flash directly over the axis of the lens, so that shadows 'fall down' behind the subjects, rather than being cast to one side
  2. Moves the flash farther from the lens center, to reduce incidence of red eye
  3. Permits the use of supplemental light modifiers, such as small softboxes, without interfering with the lens' view


Not everyone uses brackets that do all of the above. Many brackets permit the flash to be 'above the camera' but not over the lens axis when the camera is in portrait orientation, for example. But the brackets with the highest price tags can do all of the above.

You need to give me OK to edit your image and repost! Keep POTN alive and well with member support https://photography-on-the.net/forum/donate.p​hp
Canon dSLR system, Olympus OM 35mm system, Bronica ETRSi 645 system, Horseman LS 4x5 system, Metz flashes, Dynalite studio lighting, and too many accessories to mention


  LOG IN TO REPLY
