Review of Manfrotto 055xprob and Manfrotto 488RC2, Tons of Pics


dliveleyphotography
Member
Avatar
210 posts
Joined Jun 2008
Location: Katy, TX

Jul 02, 2008 00:05 |  #1

I had a hard time finding a good review with lots of pics so I thought I would put this together as my choice seems to be a very popular selection. One stop decision making post if you will

My budget for the setup was around $250.

Reading through countless post on several forums day after day for about a week I had seen countless post referring Manfrotto as the choice in mid range tripod setup.

Ok that narrows it down some but now what legs? what head? What fits my budget?

Manfrotto 488 head was by far the popular choice for ballhead. Major difference between it and cheaper models being it has a seperate control for panning. 488 has four mount options:
-no mount
-RC0
-RC2
-RC4

I was told from members here that RC2 is the best choice as far as size. For me it was between the RC2 and bigger RC4, I thought RC2 looked alittle small in the pics but I had nothing to compare it to and couldn't find the dimensions anywhere so I took the advice of forum members and got RC2. Ended up being almost perfect size (pics posted below)

Now for the legs, I had narrowed it down to either the 190xprob or 055xprob. Once again with the help of forum members from here I was told the 055 would suit me much better for my height, about 6' even.

I ended up going through amazon.com and spent a total of $277.92
-488RC2 $107.95
-055xprob $161.99
-Overnight shipping (with amazon prime membership) $7.98


Pics before final conclusion:

Came nicely boxed, wrapped in plastic and included instructions and how to register online to add 3 years to the warranty:

IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/b2ff3190.jpg

The legs were actually much lighter then I expected. Saw reviews were people said it was a heavy tripod and def. not a carry around pair of legs, after picking this up and carrying it around I have come to the conclusion that those people are just weak, lol. Its not the lightest setup but I def. wouldn't say its heavy.

The mount is a nice design with standard 3/8" screw mount in the middle followed up by 3 set screws that you tighten with a flat head screwdriver from the bottom:
IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/8909dfc4.jpg

IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/95fe681a.jpg

The legs include a built in spirit level:
IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/42cd2817.jpg

A hook to hang a bag:
IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/26108d74.jpg

A mount for a tripod strap:
IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/fc0f88d7.jpg

And also a tool to adjust the nuts on the levers, which clips onto the legs, very handy tool, never have to dig through my bag to find it:
IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/8a6930cb.jpg


All legs can be controlled separately and can be lock in at 25°,46°,66°& 88°:

25*
IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/164800f1.jpg

1D MKiiN | 40D W/ BG e2N | 50L | 17-40L | 70-200 2.8L | 400 5.6L | 100mm 2.8 Macro | 580EX II | Sekonic L-358 | 3 Calumet Genesis 200's | Manfrotto 055xprob w/ 488RC2


  LOG IN TO REPLY
dliveleyphotography
THREAD ­ STARTER
Member
Avatar
210 posts
Joined Jun 2008
Location: Katy, TX

Jul 02, 2008 00:09 |  #2

46*

IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/43acc002.jpg

68*
IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/b260b7c7.jpg

88*
IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/54eccc94.jpg



Now on to the head.

Has nice degree grid around the bottom markings every 5° and a numbered marking every 15°. Lever on the left controls the lock for panning and the wheel on the right is for locking/unlocking the ballhead:
IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/8e671aeb.jpg

The RC2 mount ended up being almost the perfect size.

The plate has the standard 1/4" mounting screw that has a pop up grip for screwing it in. It also has directional arrows for which way a lens should be mounted:
IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/5d1792c9.jpg

Mounted on 40D:
IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/361ab37a.jpg

IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/e6f07fc7.jpg

1D MKiiN | 40D W/ BG e2N | 50L | 17-40L | 70-200 2.8L | 400 5.6L | 100mm 2.8 Macro | 580EX II | Sekonic L-358 | 3 Calumet Genesis 200's | Manfrotto 055xprob w/ 488RC2


  LOG IN TO REPLY
dliveleyphotography
THREAD ­ STARTER
Member
Avatar
210 posts
Joined Jun 2008
Location: Katy, TX

Jul 02, 2008 00:10 |  #3

Mounted on 40D with BG e2N grip:

IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/24b7dfba.jpg

IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/049b8773.jpg


Mounted to 70-200 2.8L tripod collar:
IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/11450238.jpg

IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/6286c4b7.jpg


RC2 mount features the quick clamp lever along with a safety lever to prevent accidental release of the camera (safety lever is the gold one):
IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/249afc8a.jpg

40D with BG e2N and 28-135mm IS USM mounted:
IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/3ddb4bb4.jpg

IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/1fd54f74.jpg


Another useful item this set of legs has is that the center column can be mounted upside down or even horizontal in a matter of seconds.

IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/87465824.jpg

1D MKiiN | 40D W/ BG e2N | 50L | 17-40L | 70-200 2.8L | 400 5.6L | 100mm 2.8 Macro | 580EX II | Sekonic L-358 | 3 Calumet Genesis 200's | Manfrotto 055xprob w/ 488RC2


  LOG IN TO REPLY
dliveleyphotography
THREAD ­ STARTER
Member
Avatar
210 posts
Joined Jun 2008
Location: Katy, TX

Jul 02, 2008 00:12 |  #4

Center column being used in horizontal position:

IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/5a220e52.jpg

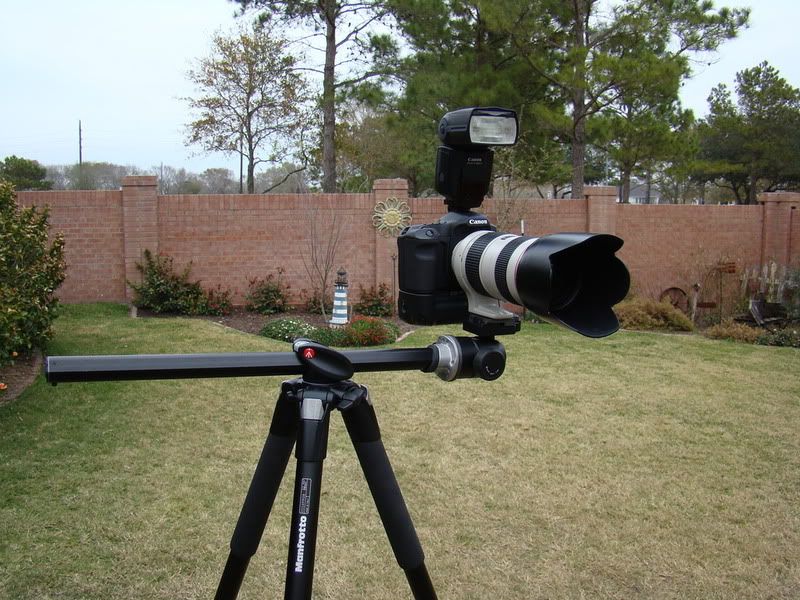

New pic shown with gripped 40D, 580ex II and 70-200 2.8L, it can handle the weight off set very nicely:
IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/f50d1c1d.jpg


This setup is the perfect fit for my height (6' even) with the legs fully extended and center column all the way down the viewfinder is right at eye level:
IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/9091c673.jpg

IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/94a1a96d.jpg


It beats my old Velbon VE-3 by a long shot:
IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/923b1273.jpg

Even with the Velbon fully extended the Manfrotto is alittle bit taller:
IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/b7f8e368.jpg


Only two downsides I have found to this setup:

1. The black caps over the nuts for the leg levers don't fit very well, 4 fell off just moving the legs to each degree shown above:
IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/5c89741c.jpg

2. The 488 only has a mark on one side for reading the degree, would be nice if it was on both sides but its really no big deal as it is easy to switch the camera 180 degrees when it needs to be used.

*Sorry no pic for now I will upload one tomorrow*

So now the big question, was it worth it?


YES! I can honestly say it was very much worth the money, just the peace of mind that the tripod won't tip over is very much worth it by itself. The velbon I was using was very tippy and I almost lost my camera. The 488 head works very nicely, easy to adjust and holds the camera firmly in place. My frames for HDR's actually line up now

Overall Manfrotto def. puts out a quality product and has my business for years to come. I would recommend this setup to anyone that is looking for there first serious setup and doesn't want to spend the extra to get a carbon fiber model. For the money this setup can't be beat.


Sheba agrees, Manfrotto wins:
IMAGE: http://i305.photobucket.com/albums/nn207/muddytaco3/tripod/5f8f64fb.jpg



Update:

Added new pics, including RC2 mounted on a Canon tripod collar.

New video with "tap" test, movement of ballhead and how to move center column to order positions:
http://www.youtube.com​/watch?v=AF38sOYWqTE&f​mt=18 (external link)

1D MKiiN | 40D W/ BG e2N | 50L | 17-40L | 70-200 2.8L | 400 5.6L | 100mm 2.8 Macro | 580EX II | Sekonic L-358 | 3 Calumet Genesis 200's | Manfrotto 055xprob w/ 488RC2


  LOG IN TO REPLY
westcoaster17
Member
Avatar
124 posts
Joined Mar 2007
Location: SW Washington

Jul 02, 2008 00:17 |  #5

great review. Very informative.





  LOG IN TO REPLY
smorter
Goldmember
Avatar
4,506 posts
Likes: 19
Joined Nov 2007
Location: Melbourne, Australia

Jul 02, 2008 00:23 |  #6

Very nice! Thanks


Wedding Photography Melbourneexternal link
Reviews: 85LII


  LOG IN TO REPLY
ben_r_
-POTN's Three legged Support-
Avatar
15,894 posts
Likes: 13
Joined Nov 2007
Location: Sacramento, CA

Jul 02, 2008 00:25 |  #7

Excellent review!


[Gear List | Flickr (external link) | My Reviews] /|\ Tripod Leg Protection (external link) /|\
GIVE a man a fish and he'll eat for a day. TEACH a man to fish and he'll eat for a lifetime.


  LOG IN TO REPLY
brecklundin
Goldmember
Avatar
2,179 posts
Joined Jun 2008

Jul 02, 2008 00:45 |  #8

I want to thank you....I have not been able to get a grasp on how heads mount to the legs/monpod/whatever..​.plus seeing the adjustments for the tripod was super helpful.

To date reading about tripods and heads has made my eyes bleed...if I tried adding reading about flashes the bleeding would extend to include my ears...you solved at least one of the problems. I won't need to go back and try to decipher the Manfrotto site ever again...THANKS!! :D


Real men shoot Pentax because we're born with our own Canon's!!
{Ok...ok, some of use just have a PnS but it it always makes me happy! :D}
Pentax K5, K20D, Three Amigos (Pentax FA 31/1.8 Limited Silver, Pentax FA 43/1.9 Limited Silver, Pentax FA 77/1.8 Limited Silver), Pentax DA 35mm F2.8 Macro Limited, Sigma 24-60/2.8


  LOG IN TO REPLY
condyk
Africa's #1 Tour Guide
Avatar
20,887 posts
Likes: 22
Joined Mar 2005
Location: Birmingham, UK

Jul 02, 2008 01:17 |  #9

Nice review and always great to see some animal in a product shot. I usually try and achievbe the same thing. I'm interested in the CF version as my current 190 is at its load carrying limits since I upgraded. Good tripods IMO.


https://photography-on-the.net …/showthread.php​?t=1203740


  LOG IN TO REPLY
AnthonyLin
Member
75 posts
Joined Jun 2008
Location: Orange County, CA

Jul 02, 2008 05:24 |  #10

thanks for the review! I purchased the same set off amazon and it's arriving tomorrow. Can't wait to mess around with it.


Canon EOS 40D, 17-55 f/2.8 IS, 50 f/1.8, 28-135 f/3.5-5.6 IS, 580EX II


  LOG IN TO REPLY
Kimberwhip
Member
Avatar
223 posts
Joined May 2008
Location: Phoenix, AZ North valley

Jul 02, 2008 05:28 |  #11

Thank you!


Canon 40D :D Canon Rebel XT
18-55, 28-135 IS USM, 70-300 IS USM, 100-400l IS USM, 580ex II 100-400L, 85mm 1.8
MANFROTTO 3036+501 190CLB+ 3265 680+308rc


  LOG IN TO REPLY
franklinn
previously 'CorporationMe'
Avatar
1,424 posts
Joined Dec 2006
Location: Vancouver, BC

Jul 02, 2008 05:45 |  #12

good review - even better pictures.

thanks for the info!



Frank | 5D MK II
| 35 1.4L | Marketplace Feedback


  LOG IN TO REPLY
Red ­ Dot
Senior Member
Avatar
627 posts
Joined Feb 2008
Location: Trapped Inside the Penta-prism

Jul 02, 2008 05:56 |  #13

rated 5 stars, very helpful!


I tried to write my signature, but my pen ran out and I put a big scratch on my monitor


  LOG IN TO REPLY
1downfall
Goldmember
Avatar
4,059 posts
Likes: 5
Joined Nov 2007
Location: virginia beach, va

Jul 02, 2008 05:59 |  #14

AnthonyLin wrote in post #5833246 (external link)
thanks for the review! I purchased the same set off amazon and it's arriving tomorrow. Can't wait to mess around with it.

lol...+1^ here. Mine should be here around the 7th from Amazon as well. Awesome review!!:lol::lol::lol:


Bill (external link)
Flickr (external link) My Gear
http://www.facebook.co​m …y/1428819857394​49?ref=sgm (external link)


  LOG IN TO REPLY
René ­ Damkot
Cream of the Crop
Avatar
39,856 posts
Likes: 8
Joined Feb 2005
Location: enschede, netherlands

Jul 02, 2008 06:29 as a reply to  @ 1downfall's post |  #15

dliveleyphotography wrote in post #5832175 (external link)
The plate has the standard 1/4" mounting screw that has a pop up grip for screwing it in. It also has directional arrows for which way a lens should be mounted:
QUOTED IMAGE

I actually always used to mount the plate to the camera with the lens pointing "away" from arrow #1.
Made using a collared lens possible, and got the QR lever out of my chin ;)


Nice review.
