50 mm /1.4 Not focusing


Chazs
Senior Member
515 posts
Joined Aug 2002
Location: NW Washington

Mar 10, 2009 01:15 |  #1

Haven't been on here for awhile...I have a 50 mm 1:1.4 lens that decided to not focus anymore. All other lenses auto focus just fine. It's as though the AF/MF switch doesn't work. Any ideas about self-fixing it, or is it worth it to send it back to canon. Any suggestions welcome.


CHUCK





  LOG IN TO REPLY
jra
Cream of the Crop
Avatar
6,568 posts
Likes: 35
Joined Oct 2005
Location: Ohio

Mar 10, 2009 05:49 |  #2

It's a rather common problem with that lens. Your best bet is probably to send it off to Canon....although I seem to remember of hearing about someone doing a "self repair" from somewhere....but that doesn't help you :)





  LOG IN TO REPLY
msowsun
"approx 8mm"
Avatar
9,317 posts
Gallery: 18 photos
Best ofs: 1
Likes: 416
Joined Jul 2007
Location: Peterborough Ont. Canada

Mar 10, 2009 11:03 |  #3

Sorry to hear about your lens not focusing. The 50mm 1.4 does seem to have more than it's share of AF problems.

If you take a moment to do this poll and post your problem, it may help out others
who have this lens: https://photography-on-the.net/forum/showthre​ad.php?t=633048


Mike Sowsun / SL1 / 80D / EF-S 24mm STM / EF-S 10-18mm STM / EF-S 18-55mm STM / EF-S 15-85mm USM / EF-S 55-250mm STM / 5D3 / Samyang 14mm 2.8 / EF 40mm 2.8 STM / EF 50mm 1.4 USM / EF 100mm 2.0 USM / EF 100mm 2.8 USM Macro / EF 24-105mm IS / EF 70-200mm 2.8L IS Mk II / EF 100-400 II / EF 1.4x II
Full Current and Previously Owned Gear List over 40 years Flickr Photostream (external link)


  LOG IN TO REPLY
mr.lemarc
Member
221 posts
Joined Dec 2008
Location: Bay Area CA

Mar 10, 2009 11:06 |  #4

try mounting it later on...mine temporarily didnt focus and then it started working again in 15min or so. I always wondered if it was affected by the cold weather as that was the only thing that changed.


50D | Σ18-50mm f/2.8 macro | 85mm f/1.8 | 55-250mm | 580ex II | Manfrotto 055XPROB 488RC2
Previously Owned: XSI | 28-135mm | 17-85mm | 50mm f/1.8 | 50mm f/1.4 | 18-55mm IS | 430ex II


  LOG IN TO REPLY
snails
"I used the last of it to tip the strippers."
Avatar
1,517 posts
Joined Jan 2008
Location: Ann Arbor, MI

Mar 10, 2009 11:08 |  #5

Just for my own data, how do you store the lens? Hood attached? With other lenses? On it's side, facing up, or facing down?


Canon EOS 7D EOS 5D Mark II EOS 40D PowerShot G10 | Canon EF 24-105mm f/4L IS USM EF 100mm f/2.8L Macro IS USM EF 50mm f/1.4 USM EF 16-35mm f/2.8L II USM EF 70-200mm f/2.8L IS USM EF-S 18-55mm f/3.5-5.6 | Sigma 24-70mm f/2.8 EX | Canon Speedlite 270 EX Speedlite 430 EX | Sigma EF 500 DG Super


  LOG IN TO REPLY
mr.lemarc
Member
221 posts
Joined Dec 2008
Location: Bay Area CA

Mar 10, 2009 13:21 |  #6

Ive stored mine with hood attached 100% of time (just pinch off lens cap) and face down in my camera bag.


50D | Σ18-50mm f/2.8 macro | 85mm f/1.8 | 55-250mm | 580ex II | Manfrotto 055XPROB 488RC2
Previously Owned: XSI | 28-135mm | 17-85mm | 50mm f/1.8 | 50mm f/1.4 | 18-55mm IS | 430ex II


  LOG IN TO REPLY
Chazs
THREAD ­ STARTER
Senior Member
515 posts
Joined Aug 2002
Location: NW Washington

Mar 10, 2009 19:16 |  #7

Thanks for the help all. Something else I discovered ...

manually focusing it (still in AF mode) there is very little resistance, but with the focus button (*) down there's more resistance and some jerky sensation. The motor is trying to do something, so it's definitely not the AF/MF switch. Occasionally it willtry to move about 1mm on it's own (while AF).

My guess is it has something stuck in the micro gears, and I'm not going to get it out on my own. Sounds like a trip to the repair store. :(

CHUCK





  LOG IN TO REPLY
msowsun
"approx 8mm"
Avatar
9,317 posts
Gallery: 18 photos
Best ofs: 1
Likes: 416
Joined Jul 2007
Location: Peterborough Ont. Canada

Mar 10, 2009 19:25 |  #8

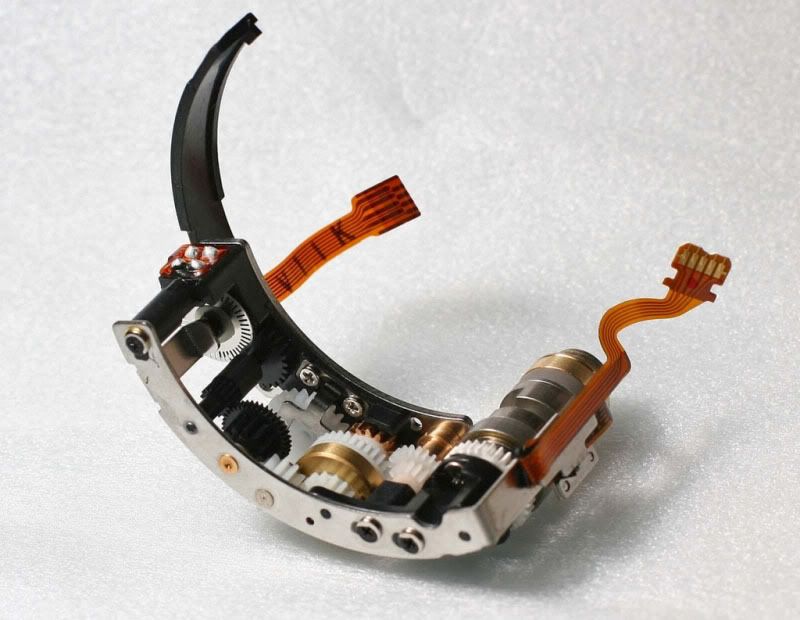

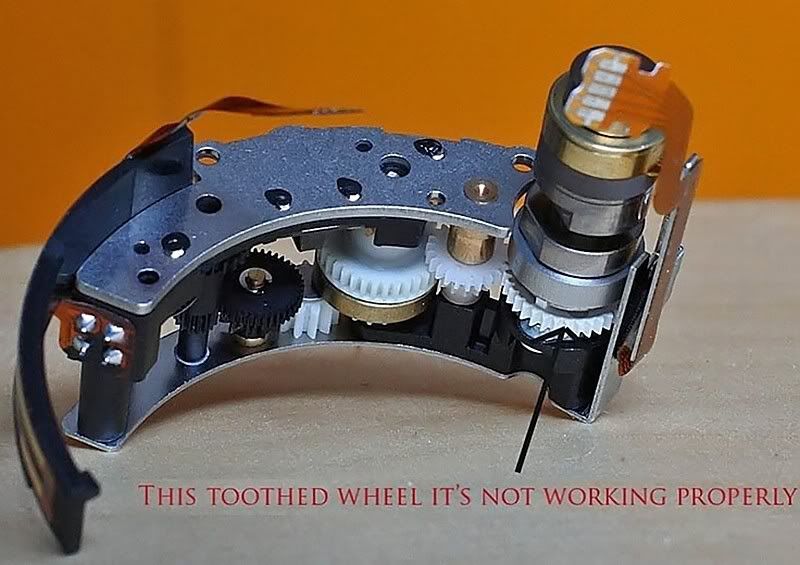

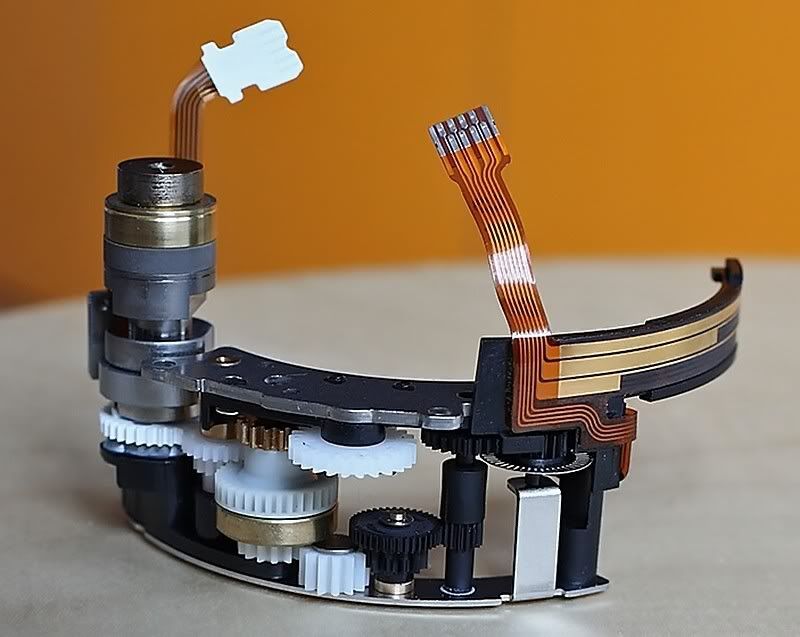

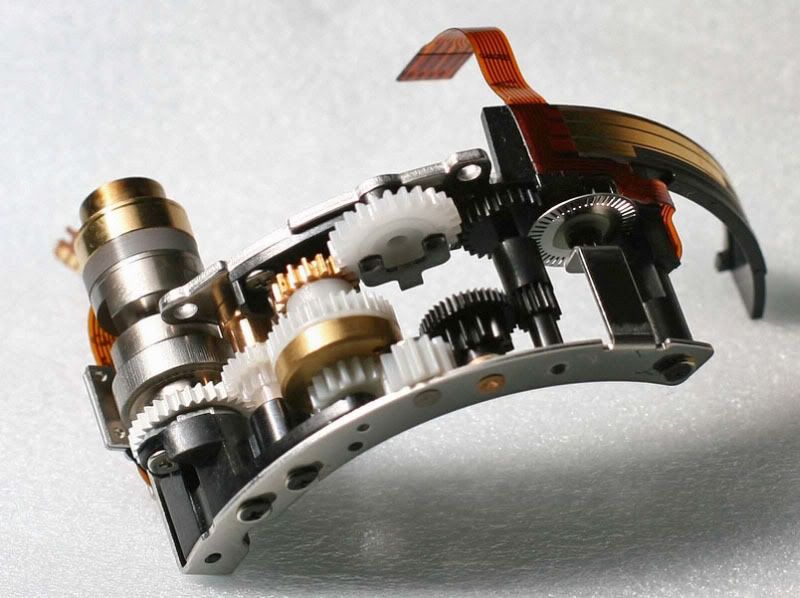

There are many gears in this lens. There is a clutch system which allows Full Time Manual focus even though it only has Micro USM.

IMAGE: http://i2.photobucket.com/albums/y17/msowsun/photo%20stuff/EF50mmclutchsystem_800.jpg

IMAGE: http://i2.photobucket.com/albums/y17/msowsun/photo%20stuff/EF50mmclutchsystem2_800.jpg

IMAGE: http://i2.photobucket.com/albums/y17/msowsun/photo%20stuff/EF50mmclutchsystem3.jpg

IMAGE: http://i2.photobucket.com/albums/y17/msowsun/photo%20stuff/EF50mmclutchsystem4.jpg

Mike Sowsun / SL1 / 80D / EF-S 24mm STM / EF-S 10-18mm STM / EF-S 18-55mm STM / EF-S 15-85mm USM / EF-S 55-250mm STM / 5D3 / Samyang 14mm 2.8 / EF 40mm 2.8 STM / EF 50mm 1.4 USM / EF 100mm 2.0 USM / EF 100mm 2.8 USM Macro / EF 24-105mm IS / EF 70-200mm 2.8L IS Mk II / EF 100-400 II / EF 1.4x II
Full Current and Previously Owned Gear List over 40 years Flickr Photostream (external link)


  LOG IN TO REPLY
zyphertx
Member
90 posts
Joined Jan 2006

Mar 10, 2009 21:16 |  #9

Nothing a hundred dollars and a trip to canon won't fix. happened to mine about a month ago.





  LOG IN TO REPLY
mr.lemarc
Member
221 posts
Joined Dec 2008
Location: Bay Area CA

Mar 10, 2009 21:21 |  #10

zyphertx wrote in post #7498425 (external link)
Nothing a hundred dollars and a trip to canon won't fix. happened to mine about a month ago.

how long did you own the lens? and was it stored with or without the hood? face up, face down?

just curious btw. :D


50D | Σ18-50mm f/2.8 macro | 85mm f/1.8 | 55-250mm | 580ex II | Manfrotto 055XPROB 488RC2
Previously Owned: XSI | 28-135mm | 17-85mm | 50mm f/1.8 | 50mm f/1.4 | 18-55mm IS | 430ex II


  LOG IN TO REPLY
zyphertx
Member
90 posts
Joined Jan 2006

Mar 10, 2009 21:32 |  #11

Lens was about 18 months old. Used quite a bit the first 8 months then only a hand full of times. Stored face up, no hood.
