DIY: replacing Markins Q3 plate with RSS B2 LR II


kinghong1970
Goldmember
Avatar
2,093 posts
Likes: 1
Joined Jun 2009
Location: NYC/NJ

Aug 14, 2010 23:02 |  #1

Unlike ben_r, i lack the pre-planning skills and so i did not order a Q3 ballhead with the knob release plate detatched... so...

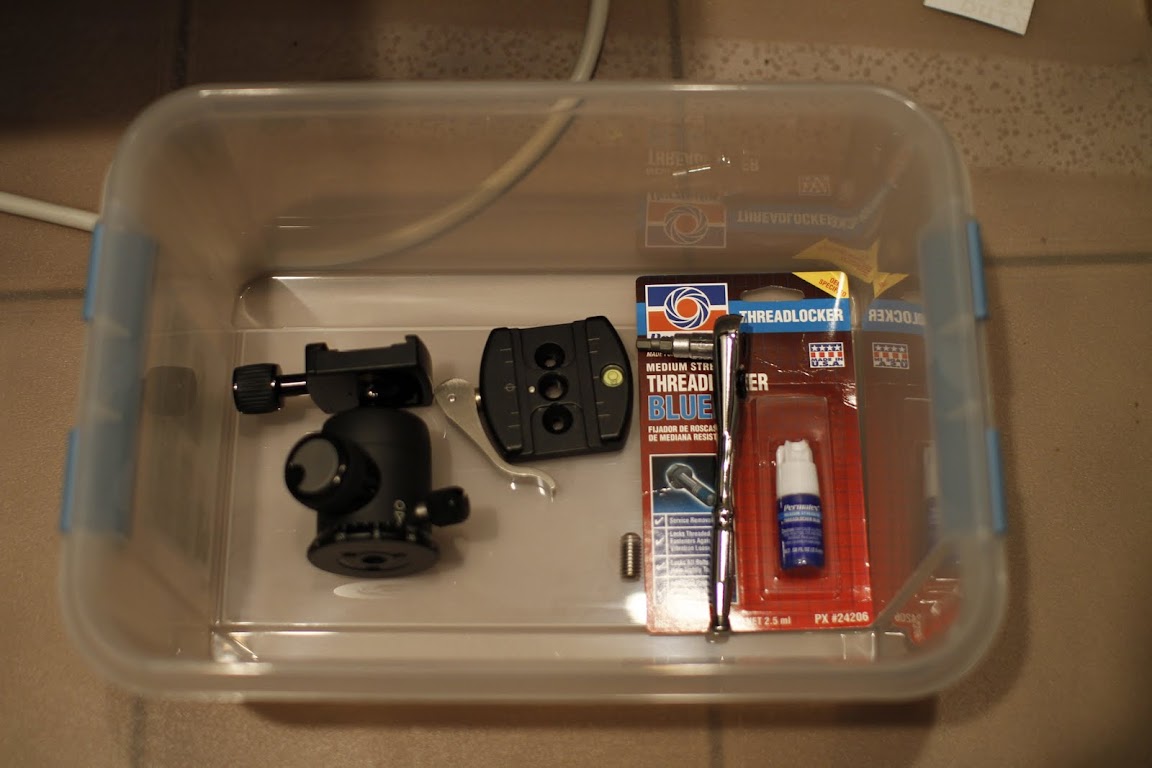

the stuff...

IMAGE: http://lh3.ggpht.com/_w9jT_GnjZSc/TGdeFkl57nI/AAAAAAAABZ8/BJ_f0VLLd-E/s1152/_MG_9400.JPG
Left to Right:
Markins Q3 Ballhead with Knob Release Plate (external link) $269.99 (actually paid less in Korea...)
RSS B2 LR II Quick Release Clamp (external link) $120.00
3/8"-16 Set Screw (external link) $1.00 from Ace Hardware (please re-verify the thread, i know it's 3/8" but i was not 100% sure if i purchased the 16 or the 24... best thing, go to Lowes or Home Depot or Ace and fit it.
Loctite Blue or equivalent
Socket Wrench
Vise Grip with a wider jaw opening...
Hammer or a Jewelry Hammer

IMAGE: http://lh5.ggpht.com/_w9jT_GnjZSc/TGdeGtwT2iI/AAAAAAAABaE/35J1hGAWR6s/s1152/_MG_9402.JPG
oh, yea, one of these comes in handy... a vise...
be careful of thems teeth... they leave a nasty mark... and be careful how much you tighten the vise... want to make sure your ball head stays a ball head not an egg head...

IMAGE: http://lh6.ggpht.com/_w9jT_GnjZSc/TGdeGKg-GnI/AAAAAAAABaA/QnToSzPF0wU/s1152/_MG_9401.JPG

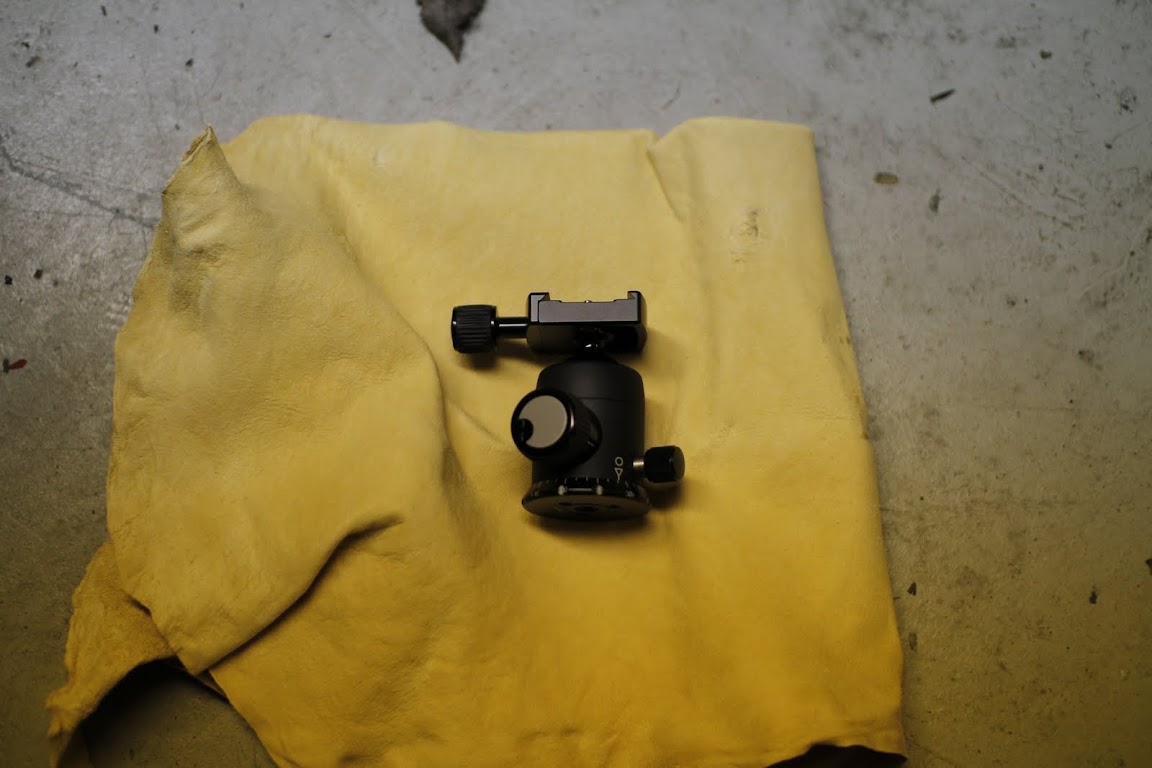

aah, yes, a faux or real suede chamois fabric/material, double or quadruple folded gave enough protection from the vise teeth... no marks on my markins... lol... scusi the pun.

IMAGE: http://lh3.ggpht.com/_w9jT_GnjZSc/TGdeHHTLO6I/AAAAAAAABaI/XuWRI85RWqk/s1152/_MG_9403.JPG

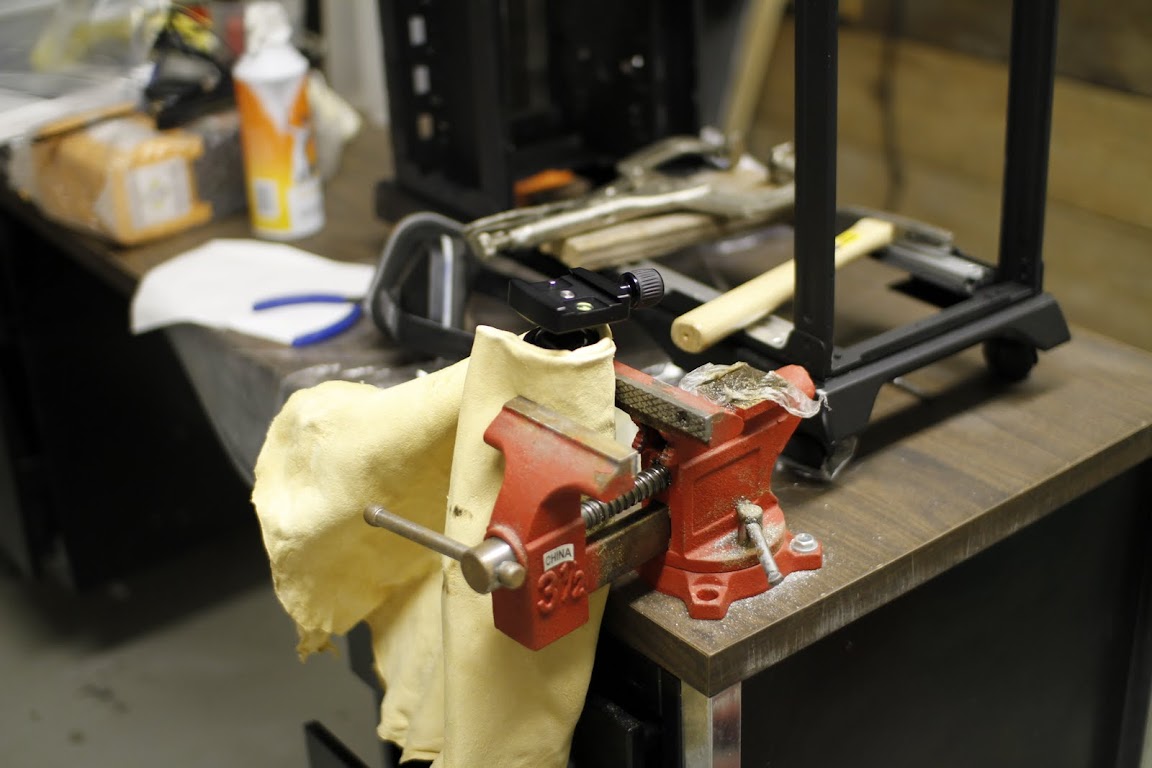

when mounting the ballhead on vise, be sure that you are not compressing the bottom pan-ring... and you can use some of the knobs to position the ballhead such that when you turn the clamp to assemble or disassemble, it will help in preventing it from turning in place, since your vise should NOT be on too tightly.

IMAGE: http://lh6.ggpht.com/_w9jT_GnjZSc/TGdeHWz5cdI/AAAAAAAABaM/_E9zr0qnB3A/s1152/_MG_9404.JPG
just another view...

IMAGE: http://lh6.ggpht.com/_w9jT_GnjZSc/TGdeH2-npmI/AAAAAAAABaQ/iQyPkFvFGns/s1152/_MG_9405.JPG
when clamping the vise grip onto the existing clamp, be sure not to use too much strength... it seems the alum is either powdered coated or anodized... more likely powder coated... it's durable, but not that durable...

i called Markins and they recommend that i tighten the clamp, then tap the screw nob of the clamp in ccw (facing top of clamp) direction... i found that using the vise grip is easier... you can use the hammer to "loosen" it... but when doing so, use a piece of wood in between so you don't leave any marks...
and don't go all out crazy and slam it with all your might...

IMAGE: http://lh3.ggpht.com/_w9jT_GnjZSc/TGdeIRymYfI/AAAAAAAABaU/IlaDcnzW3KU/s1152/_MG_9406.JPG
markins clamp removed... the center bolt is not coming off unless you have one of those screw removers or use a vise grip on the threaded section of the bolt, rendering it useless.

IMAGE: http://lh5.ggpht.com/_w9jT_GnjZSc/TGdeI0v6lRI/AAAAAAAABaY/ry34v4u-WHY/s1152/_MG_9408.JPG
nekkid ball head...

continued...

Albert the Clumsy Ape
GEAR | FEEDBACK | REVIEW | KING OF GREENE STREET (external link) | FS: Gitzo GT1550T, Photoclam PC30N


  LOG IN TO REPLY
sponsored links
(this ad will go away when you log in as a registered member)
kinghong1970
THREAD ­ STARTER
Goldmember
Avatar
2,093 posts
Likes: 1
Joined Jun 2009
Location: NYC/NJ

Aug 14, 2010 23:06 |  #2

IMAGE: http://lh3.ggpht.com/_w9jT_GnjZSc/TGdeJIFbBRI/AAAAAAAABac/ej6p2fyqV_I/s1152/_MG_9409.JPG

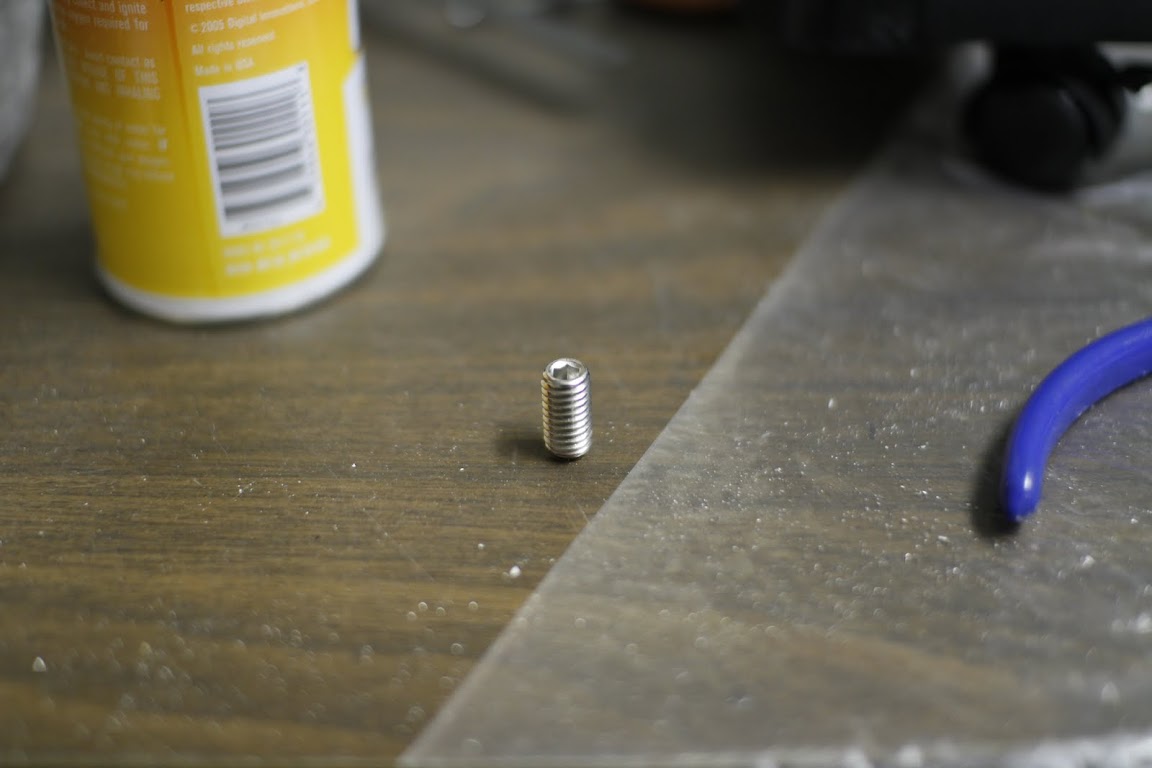

the $1.00 set screw... RSS sells them for $5.00 a pop... McMaster.com has it for cheaper... but in bags of 5 or 10 or something...

just put a drop of Loctite Blue (medium strength) on the bottom section, screw it to the ball head...

drop of it on the top section, screw in the RSS plate.

Voila!

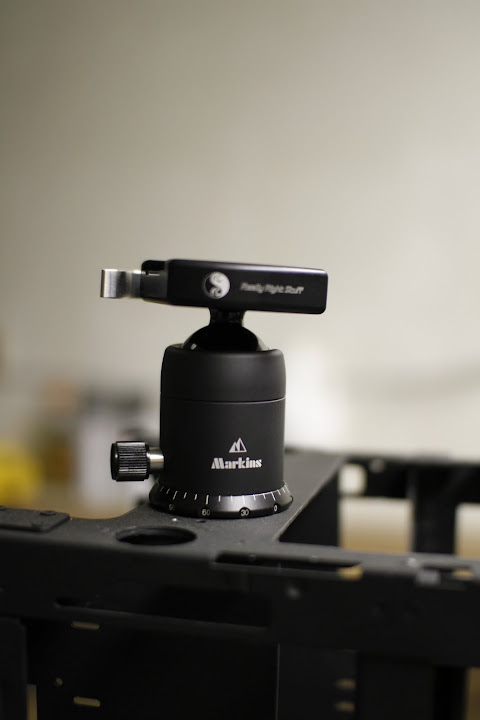

IMAGE: http://lh3.ggpht.com/_w9jT_GnjZSc/TGdeJpF9BTI/AAAAAAAABag/c9zRtLAx4JE/s720/_MG_9410.JPG

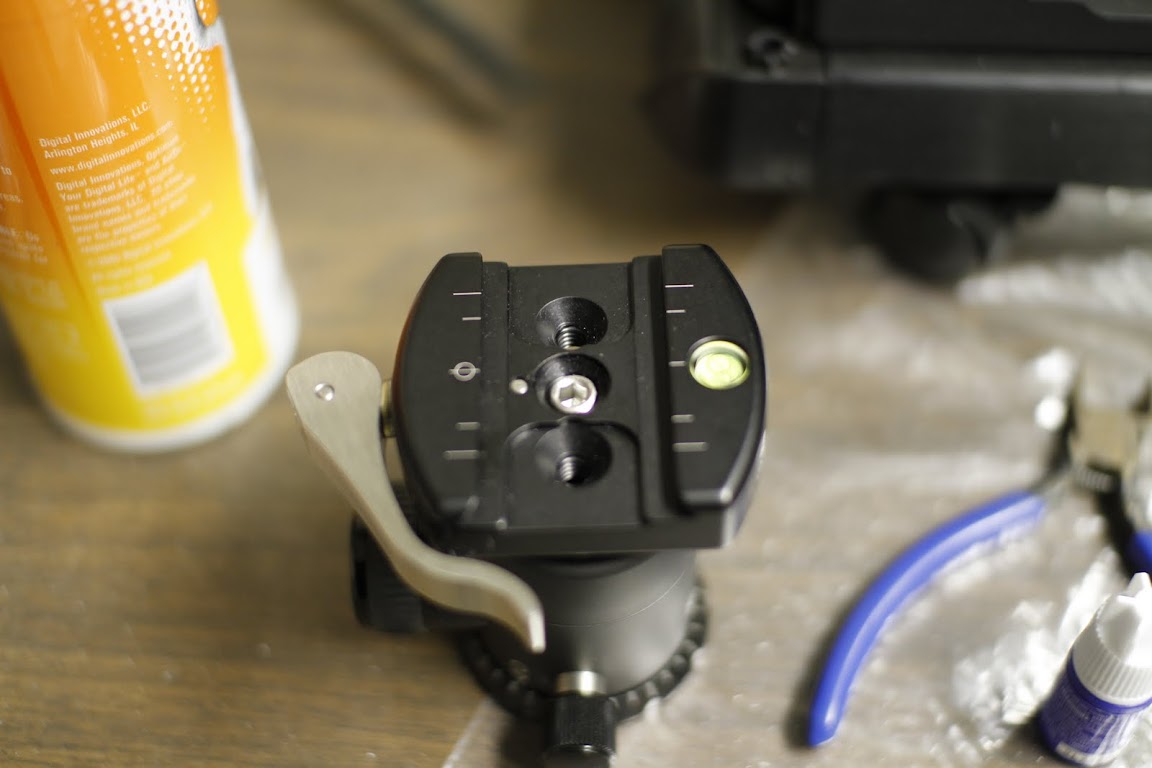

if you need to adjust the screw length, then unscrew (manually) the RSS plate, use a hex key and screw in or out the set screw and screw in the RSS tightly... let it set.
